Every site engineer and student learns about concrete cover early in their training. But understanding it as a number on a drawing is very different from understanding why it matters every time you walk onto a slab or check a column cage.
Concrete cover to reinforcement is the minimum thickness of concrete placed between the outer surface of a structural element and the nearest reinforcing bar. It is one of the most critical quality checks on any construction site, and getting it wrong has consequences that do not show up until years later.
Quick Answer: Concrete cover to reinforcement is the minimum thickness of concrete between the outer surface of a structural element and the nearest reinforcing bar. It protects the steel from corrosion, fire damage, and ensures proper bond between the steel and concrete.
Why Concrete Cover to Reinforcement Matters on Every Site
The reinforcement in your slab, beam, or column is embedded in concrete for three reasons: protection from corrosion, resistance to fire, and development of the bond between steel and concrete.
Without adequate cover, moisture and oxygen reach the steel bars and trigger corrosion. Corroding steel expands, which cracks the surrounding concrete from the inside out. That process is called spalling, and once it starts, it is expensive to repair and dangerous to ignore.
Fire resistance is equally important. Steel loses significant strength at temperatures above 300°C. The concrete cover acts as insulation, buying time before the steel reaches that critical temperature. This is why cover requirements increase for structural elements designed for higher fire resistance ratings.
What the Standards Say: BS 8110, EC2, and Kenya Standards
Nominal cover values are not arbitrary.. they come from structural codes that have been refined over decades of engineering practice and failure analysis.
Under BS 8110 (the British Standard still widely used in Kenya and across East Africa), the required nominal cover depends on exposure conditions:
| Exposure Condition | Minimum Cover (mm) |
|---|---|
| Mild (protected interior) | 25 mm |
| Moderate (sheltered exterior, humid) | 35 mm |
| Severe (exposed to driving rain, alternate wetting/drying) | 40 mm |
| Very Severe (coastal, de-icing salts) | 50 mm |
| Extreme (aggressive chemical environment) | 60 mm |
Eurocode 2 (EC2), which is gaining traction in larger infrastructure projects in Kenya, uses a similar concept but expressed as c_nom = c_min + Δc_dev, where Δc_dev is a construction tolerance (typically 10 mm). This accounts for the reality that cover can vary slightly during pouring and compaction.
The Kenya Standard KS 02-1801 for structural concrete design aligns broadly with BS 8110 values and should be referenced for any project under local authority approval.
How Concrete Cover is Maintained on Site
Knowing the required cover value is one thing. Ensuring it is actually achieved in the finished structure is another.

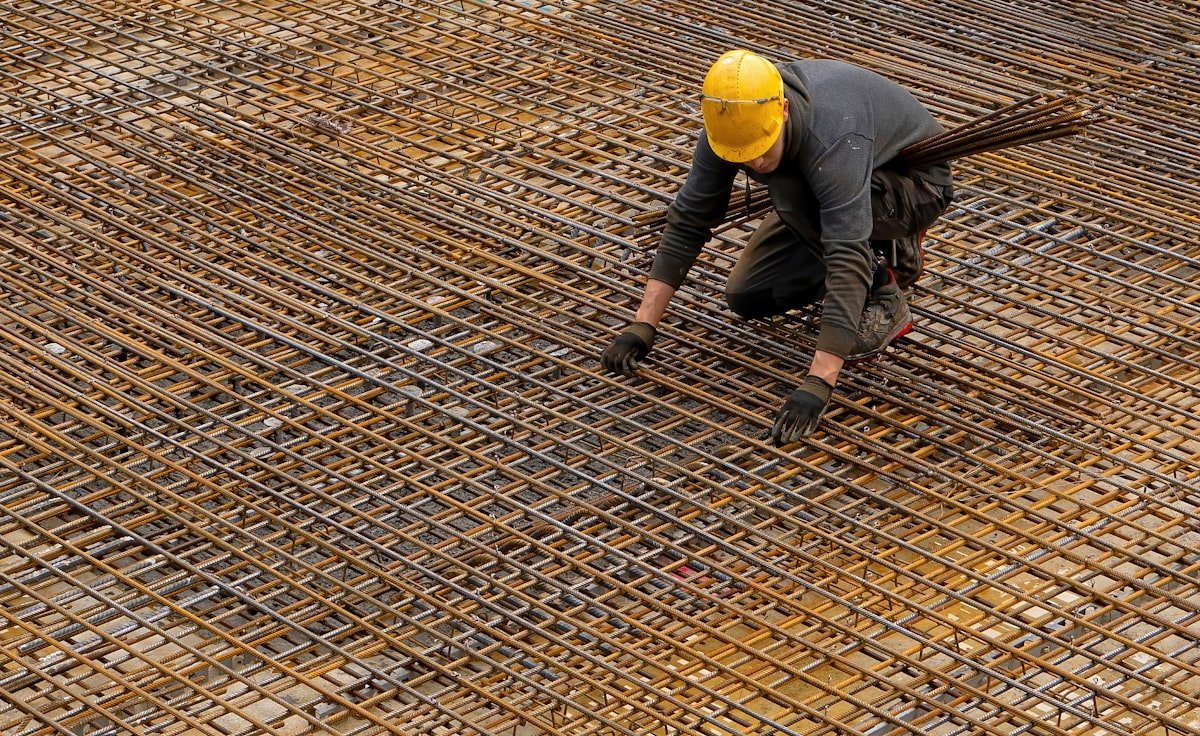

The practical tool for this is the cover block (also called a spacer or chair). These small concrete or plastic blocks are placed at specific intervals under and beside reinforcement bars to hold them at the correct distance from the formwork.
Common cover block sizes are 25 mm, 40 mm, and 50 mm. The correct size must match the nominal cover specified on the structural drawings. Using the wrong block is one of the most common site errors.
For slabs, cover blocks should be placed at no more than 800 mm centres in each direction. For beams and columns, they are placed along the bottom bars and tied to the cage before concrete is poured.
Checking Cover Before Concrete is Poured
A concrete cover inspection is part of every pre-pour quality check. As the engineer or site supervisor, you must verify the following before approving the pour:
- Cover blocks are the correct size and positioned at the right spacing.
- The reinforcement cage has not shifted from its original position.
- Spacers are present at the sides of beams, not just the bottom.
- Lap lengths are correct and bars have not been displaced.
- The clear distance between parallel bars allows concrete to pass through without segregation (typically a minimum of 25 mm or the maximum aggregate size plus 5 mm, whichever is greater).
Honestly, many cover failures happen not because the wrong blocks were used, but because they were placed correctly but then shifted when workers walked on the reinforcement or during vibration. Pre-pour inspection must happen as late as possible before pouring starts.
Cover Defects and How They Show Up Later
The consequences of inadequate cover are not immediate. Structures can look perfectly fine for 5 to 10 years before corrosion-related damage becomes visible.
Signs to watch for in older structures include:
- Rust stains on the concrete surface
- Surface cracking along the line of reinforcement (following the bar pattern)
- Concrete spalling off in chunks (delamination)
- Hollow sound when you tap the surface
The truth is, by the time these signs appear, the steel has already lost cross-section and the structural capacity of that element has been reduced.
Frequently Asked Questions
Q: What is the minimum concrete cover for a ground floor slab in Kenya?
Under BS 8110, a ground floor slab exposed to moderate conditions requires a minimum nominal cover of 35 mm. If the slab is in contact with aggressive soils or chemical environments, this increases to 40 mm or more depending on the exposure class specified by the structural engineer.
Q: Can you use plastic cover blocks instead of concrete ones?
Yes, plastic spacers are widely accepted and perform well when used correctly. The key requirement is that they are the right size for the specified nominal cover and are stable enough to stay in position during pouring and vibration. Cheap or poorly shaped plastic blocks can tip over, so check they are seated firmly.
Q: What happens if the concrete cover is too large?
Excess cover is rarely a structural problem, but it increases the depth and weight of the element. In thin slabs or beams with tight depth constraints, extra cover reduces the effective depth of the section, which directly reduces the moment capacity of the beam. Always target the specified nominal value.
Concrete cover to reinforcement is not a box-ticking exercise. It is a structural requirement that protects your building for its entire design life, which in most cases is 50 years or more.
Every time you walk onto a site and see a slab being prepared for pour, check the cover blocks. Check the size, the spacing, and whether the bars have moved. That five-minute inspection protects years of structural performance.
